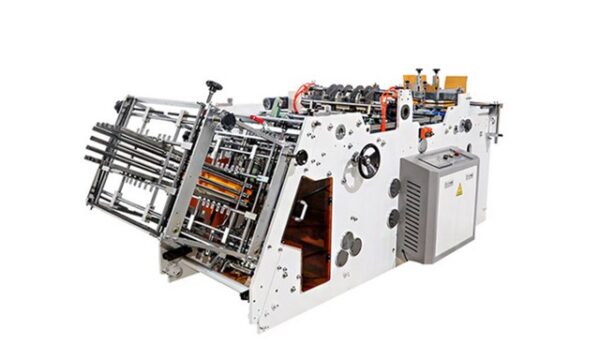

HBJ-D800 (SINGLE LANE) PAPER CARTON ERECTING MACHINE
HBJ-D800 (SINGLE LANE) PAPER CARTON ERECTING MACHINE
Product Description
HBJ-D800 (SINGLE LANE) PAPER CARTON ERECTING MACHINE
Description

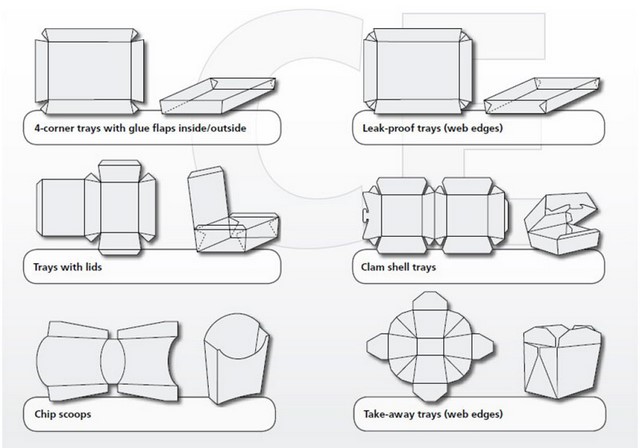

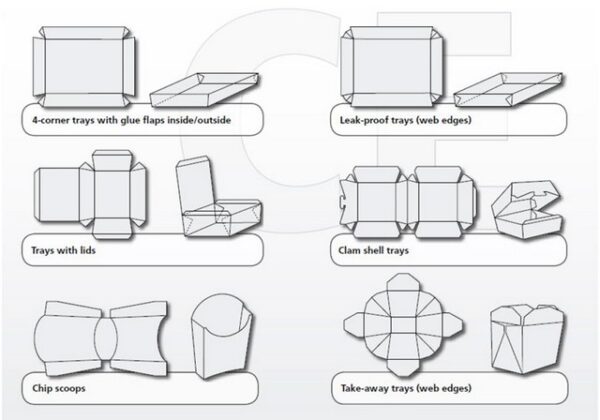

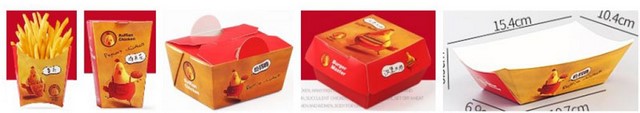

HBJ-D is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box,Chinese noodle box, hot dog box, etc. It adopts micro-computer, PLC, alternating current frequency converter, the vacuum-sucking paper feeding, auto gluing, automatic paper tape counting, and chain drive. All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.
| Type | HBJ-D800 |
| Production Capacity | 50-180 pcs/min |
| Suitable Material | 200-600gsm card paper，PE coated paper, kraft paper, corrugated paper |
| Length | L100-450mm,degree:5°-40° |
| Width | B100-600mm |
| Height H15-200mm | |
| Total Power | 5KW |
| Total Weight | 1.8T |
| Overall Dimension | 3600 x1500 x 1700 mm |
