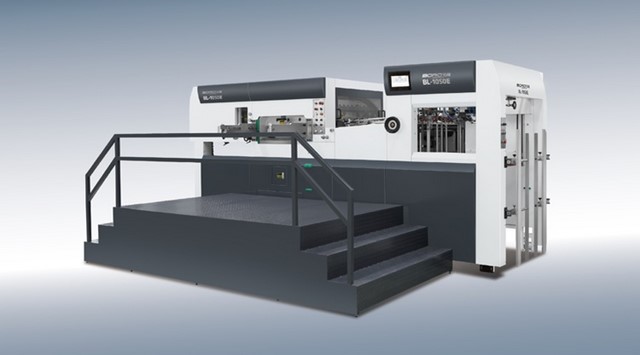

BL-1050E AUTOMATIC DIE-CUTTING MACHINE
BL-1050E AUTOMATIC DIE-CUTTING MACHINE
Product Description
BL-1050E AUTOMATIC DIE-CUTTING MACHINE
Introduce
1050 die-cutting machine series can handle a variety of substrates, in addition to weight in the 80 ~ 2000g / m cardboard, it can also cut up to 4mm thick corrugated board (EB). Die-cutting pressure of 300 tons,die-cutting accuracy of ≤ ± 0.075, the minimum gap width of 8mm, and do no Goukou processing. After installation of heating function can also be 0.2 ~ 1mmPVC, PPC, PET and other plastic materials for heating die-cutting.
Advantage

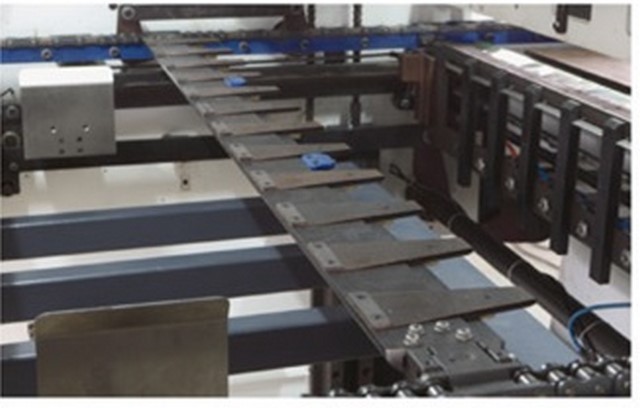

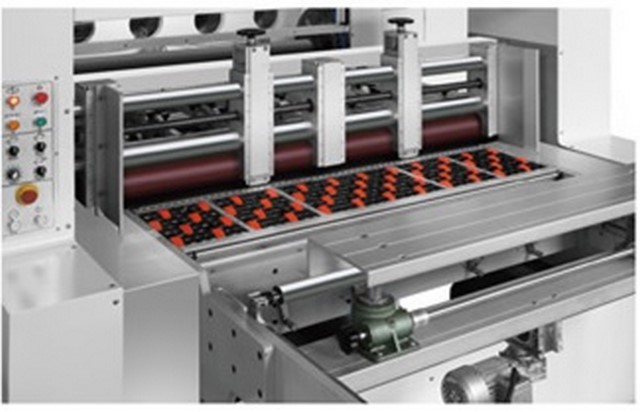

FEED TABLE
- UNDER THE SUCTION PAPER FEEDING STRUCTURE MAKES FEEDER WORKS MORE SMOOTHLY.
- PROTECT THE PRINTING SURFACE WITHOUT SCRATCHING.
- FEEDING SYSTEM ON BOTH SIDES HAS PUSH GUIDE DEVICE, ENSURE THE ACCURACY OF FEED.

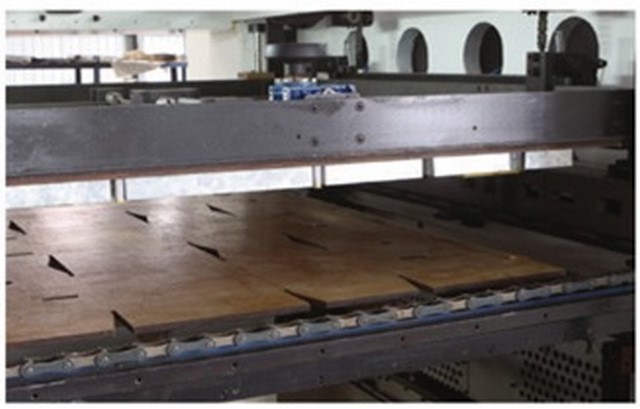

GRIPPERS VE ZİNCİR
- GRIPERS, YÜZEYDE ANOD TEDAVİSİ İLE ÖZEL EKSTRA SABİT ALÜMİNYUM ALAŞIMDAN YAPILIR, DOĞRU KESİMİ SAĞLAR.
- DOĞRUDAN KARARLILIK VE UZUN ÖMÜRLÜ İÇİN ANA GRİPPER ŞANZIMAN İÇİN ÖZEL GÜÇLENDİRME ZİNCİRİ KULLANILIR.
STRIPPING SECTION
- TWO FRAME LINKAGE STRIPPING DEVICE HAS HARMONIOUS ACTION AND ACCURATE PRECISION.
- ELECTRIC CONTROLLING LIFTING DEVICE ADOPTED TO ENSURE QUICKER OPERATION
Parameter
| Machine model | BL_1050E/BL_1050S/BL_1050SS | |
| Max sheet size | 1050X750 mm | |
| Min sheet size | 400X750 mm | |
| Max feeder pile height | 1500 mm | |
| Max delivery pile height | 1400 mm | |
| Max die cutting size | 1040X720 mm | |
| Die cutting plate size | 1080X736 mm | |
| Inner chase size | 1140X750 mm | |
| Cutting rule height | 23.8 mm 23.6 mm | |
| Stock range | 80～2000g/m2 (paper)，≤4 mm (corrugate).EB | |
| Die cutting accuracy | ≤ ± 0.075 | |
| Min.holding width | 8 mm | |
| Max die cutting speed | 7500 | |
| Max die cutting force | 300t | |
| Air requirement | 0.36m3/min :0.6-0.7Mpa | |
| Overall power | BL_1050E | BL_1050S |
| 19KW | 20kw | |
| Power required | 380V/HZ， | |
| Net weight approx | BL_1050E | BL_1050S |
| 15t | 16t | |
| Overall dimension | BL_1050E | BL_1050S |
| 6350X4250X2350 mm | 7300X4250X2350mm | |
